The charging pad monitor is the instrument of choice for evaluating air ionizers. The LCD display can clearly display the test parameters and results, it can not only measure AC, pulsed AC, pulsed DC and steady-state DC ion generators, but also the higher dynamic measurement range, which enables more accurate measurement of the performance of high-frequency AC ion generators. The separable test plate design is ideal for testing in tight environments or process equipment, allowing operators to easily place the test plate where it needs to be tested without worrying about the impact of the equipment body on the test results
Hiệu suất
❯ High accuracy/wide range measurement
❯ measurement of temperature and humidity
❯ Pass determination and screenshot functions
❯ Built-in large-capacity lithium battery
Tính năng chính
❯ The 7-inch high-definition touch screen screen is easy to operate
❯ Test different types of ionizers
❯ Complies with lEC and ANSl standard test methods
Tải xuống
❯ MC158-Tronovo Charged Plate Monitor

Bạn có thể cũng muốn xem những sản phẩm này

Thông số sản phẩm

  • Product Model
  • MC137 / MC138
  • Bandwidth
  • DC to 80 Hz (-3dB)
  • Display Screen
  • 7-inch multi-touch capacitive screen, display resolution 1024x600
  • Voltage Range
  • 0~±1150 VDC or peak AC
  • Voltage Accuracy
  • 0~100V:±S3V / 100~1000V:≤±2.5%
  • Zero Stability
  • ≤6V/minute (no incident ion current, plate voltage drift with time)
  • Timing Range
  • 0.1~180s
  • Timing Resolution
  • 0.01s
  • Ion collection plate
  • 150x150 mm (in accordance with the requirements of ANSI/ESD STM3.1), cable length: 2 meters coaxial line
  • Instrument interface
  • USB Host, USB Device, LAN optiona
  • Battery operating time
  • Built-in lithium battery, continuous operation time more than 5 hours
  • Power supply
  • Power supply 12VDC, 2A, 2.1mm jack charger
  • Operating Environment
  • 0~+50°C, 10~80%RH (no condensation)
  • Volume / Weight
  • 245x145x265mm / Body approx. 2.8kg (main unit with plate)
  • Warranty
  • Two-year limited warranty

Chi tiết sản phẩm

1

ESD Audit Equipment

Third Party ESDA or IECQ ESD System Certification Testing Equipment

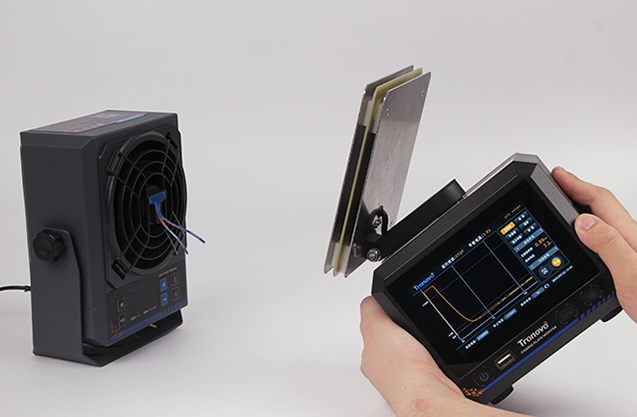

Static eliminator testing

Evaluate the performance of ion rods, ion guns, ion nozzles, etc.
Performance of space electrostatic eliminators, etc.
Conforms to IEC61340-5-1 and ANSI/ESD SMT3.1.

画板 2.png
画板 3.png

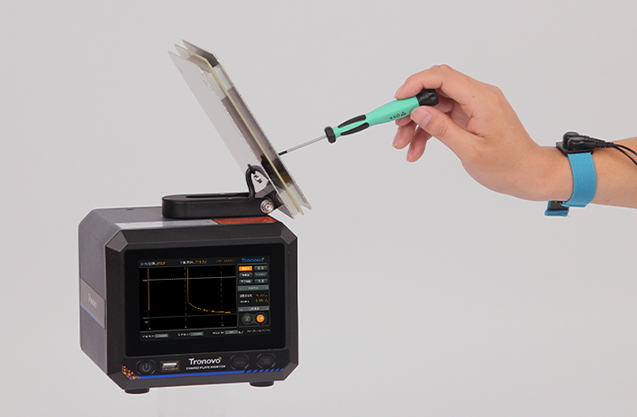

Material Static Dissipative Testing

Tests static dissipative materials or finished products for static decay time

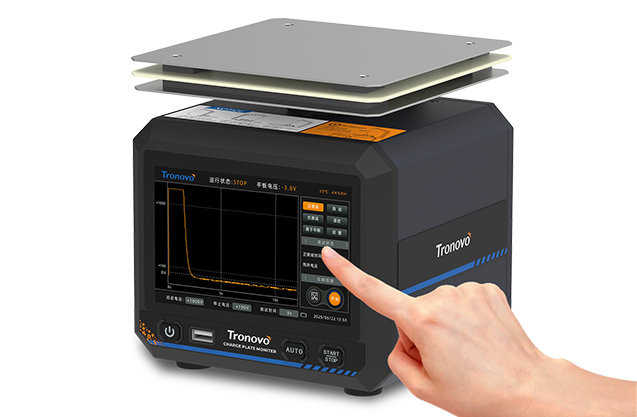

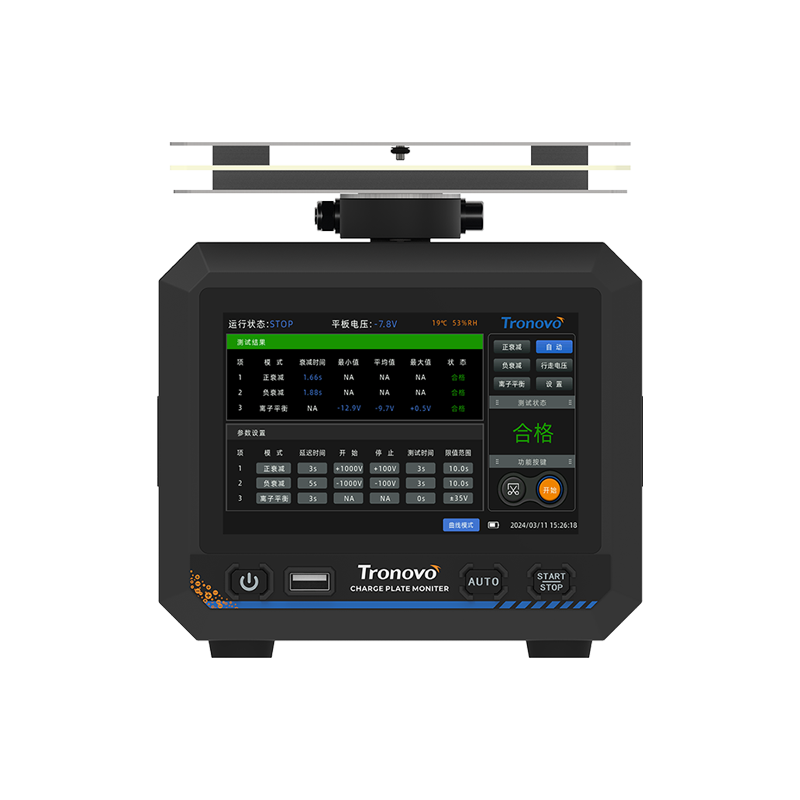

“7-inch” touch screen HD display

Simultaneous measurement of results + temperature and humidity
Humanized interactive experience, all data can be displayed on the same screen

画板 4.png
wechat_2025-05-30_150258_501

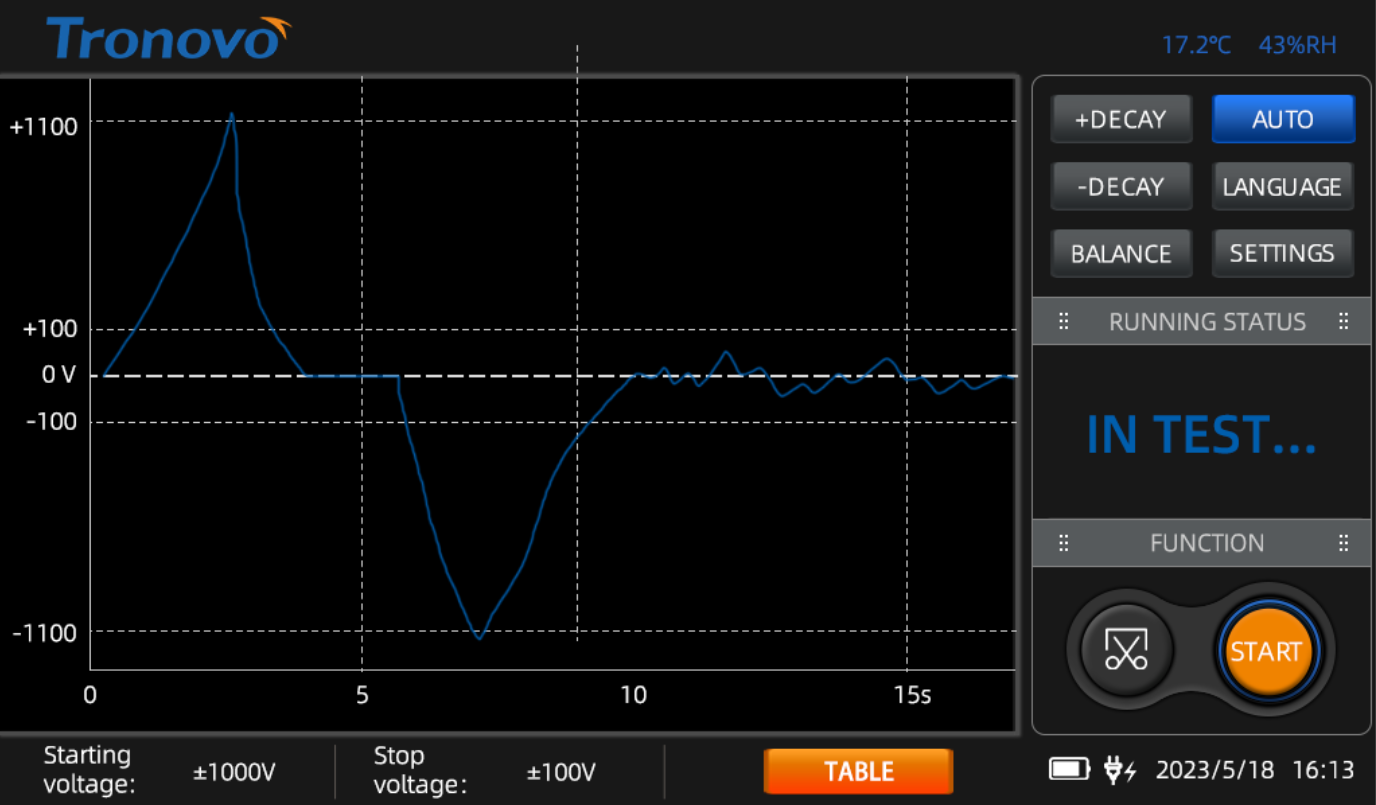

Intuitive “Waveform Watch” display

Ionizer performance evaluation with curve display of decay time and equilibrium voltage.

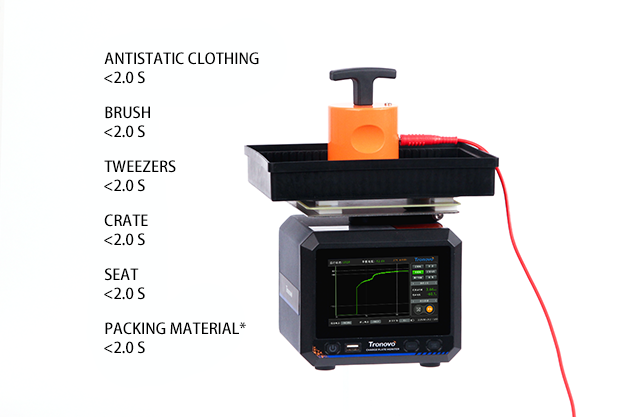

Anti-static materials/products performance testing

Test materials or finished products of static decay time in the field to quickly detect the commonly used anti-static articles are qualified.

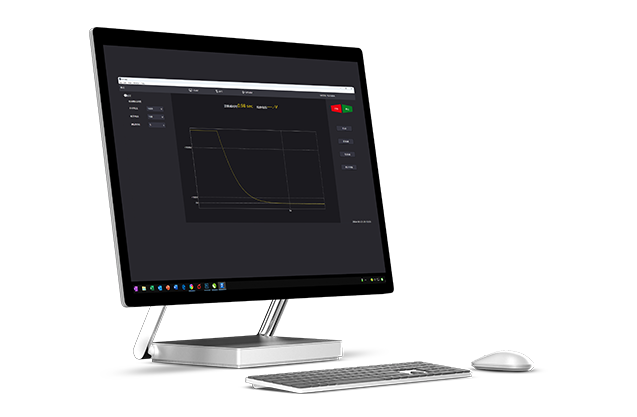

Support the upper computer software

Support U disk one-key screenshot storage friendly graphical interface, so that you can easily get started

画板 6.png
