DF722 Wide Coverage lonizing Air Blower
DF722 Wide Coverage lonizing Air Blower
DF722 Wide Coverage lonizing Air Blower
DF722 Wide Coverage lonizing Air Blower

DF722 Wide Coverage lonizing Air Blower

0
Ionizing fans feature AC corona technology with excellent ion balance and fast static elimination speed, variable wind speed regulation that produces a balanced flow of positive and negative ions without calibration, and the equipment is used in many industries and manufacturing applications where static electricity needs to be addressed. Suspended ionizers provide superior anti-static performance over the entire working face. We can also have built-in lamps and heaters to protect sensitive electronic components from static electricity while providing greater convenience and comfort for the operator.
Hiệu suất
❯ The entire workbench can be covered
❯ Simplify maintenance
❯ It is easy to check the output of ions
❯ Filters dust and other debris from the air
❯ It can quickly eliminate static electricity
Tính năng chính
❯ Large coverage for fast static elimination
❯ Built-in ionic needle cleaning brush
❯ Stable ionic equilibrium
❯ Air inlet filter is standard
❯ The wind is strong can be adjusted
Tải xuống
❯ DF722 DF723 DF724-Tronovo Wide coverage lonizing Air Blower

Bạn có thể cũng muốn xem những sản phẩm này

Thông số sản phẩm

  • Model
  • DF722
  • Voltage
  • 220V/50Hz or 110V/60Hz(customized)
  • Power
  • 60W (Heater function on)
  • Discharge
  • ≤ 2.5 S @ 30cm (Max Airflow)
  • Balance
  • ≤|±15V|(AVE)
  • Technology
  • AC
  • Airflow area
  • 40X120cm
  • Airflow
  • 2x45~110CFM
  • Audible Noise
  • ≤65db
  • Temperature
  • 0 to 40°C,35 to 80% RH (non-condensing)
  • Ozone
  • ≤0.03ppm(measured at 15cm in front of the fan)
  • Weight
  • 4.2kg
  • Dimensions
  • 400X168 x126mm
  • Optional
  • Metal bracket
  • Wranty
  • One-year

Chi tiết sản phẩm

0-0-1-0 (3).jpg

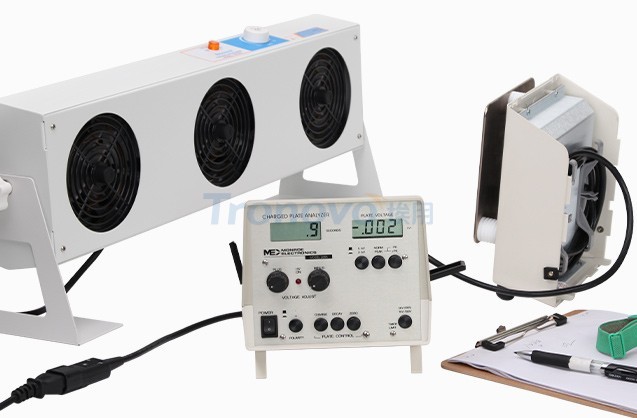

ESD protection standards

The ability of the static eliminator is tested by the United States EOS/ESD standard for the use of a live flat panel monitor, and the residual voltage standard specifies between ±35V and the static dissipation time reflects the speed at which the static electricity is removed.

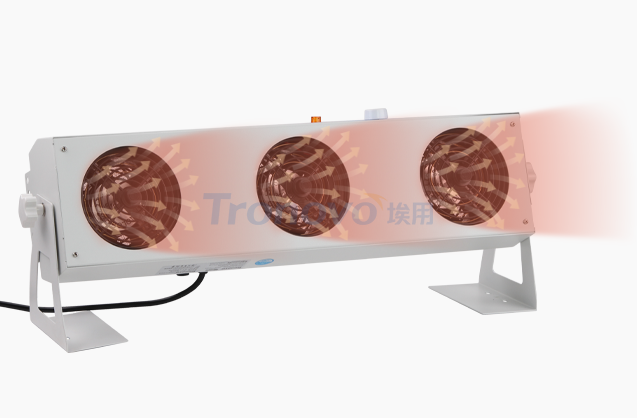

It has a warm air heating function

It comes with warm air heating, which makes the operator more comfortable in winter. The products are used in a wide range of applications, from electronic and medical device assembly to testing and packaging; It is more commonly used in the assembly and testing of components in the flat panel display industry.

0-0-1-0 (4).jpg

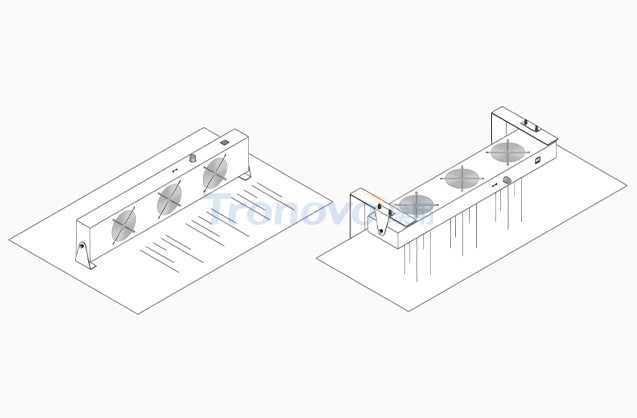

Installation method:

A fan-type ionizer with a wide range of applications to prevent electrostatic contamination and damage, making it an ideal equipment for personal electrostatic protection areas such as electronic production lines and maintenance benches.

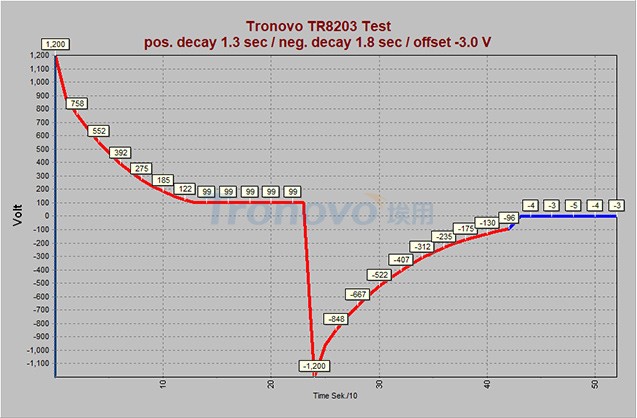

Test instrument: CPM374

Test voltage: ±1000V → ±100V attenuation
Measure distances:30CM
Measurement environment: humidity 55%, temperature 25°C

0-0-1-0 (1).jpg
