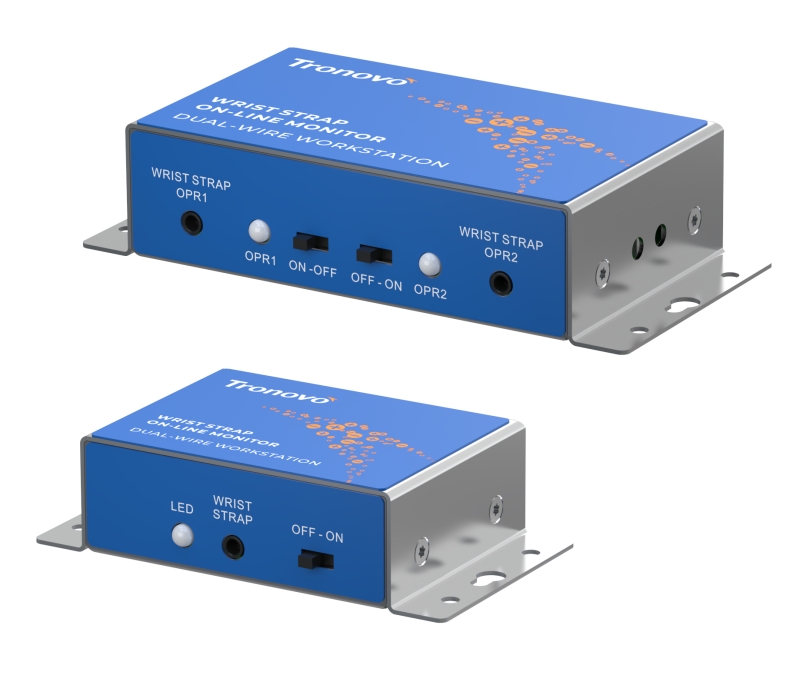

MM322 Dual Wrist  Strap On Line Monitor
MM322 Dual Wrist  Strap On Line Monitor
MM322 Dual Wrist  Strap On Line Monitor
MM322 Dual Wrist  Strap On Line Monitor

MM322 Dual Wrist Strap On Line Monitor

0
Compared with the traditional single-loop bracelet, the dual-loop anti-static bracelet has the advantages of double protection, enhanced safety, improved reliability and special work requirements in terms of electrostatic protection. The dual-loop online monitoring alarm can alarm according to the preset upper and lower limit thresholds. Once the resistance value on the wristband exceeds the preset value, the online monitor will send out an audible alarm and flash warning signal to remind the user to check and deal with the electrostatic problem and ensure the safety of the work.
Some working environments have stricter requirements for static electricity protection, especially when it comes to the operation or operation of sensitive electronic devices, the dual-loop bracelet is used with an online monitor, which can provide higher electrostatic protection performance to meet the needs of these special working environments.
Hiệu suất
❯ Designed for continuous monitoring of dual-loop wrist straps
❯ Compatible with different national and industry standards
❯ Meets the high hygienic standards of the clean room
❯ The operating status signal output, which can be connected to the alarm light or networking
❯ SMT chip placement process, good reliability and strong anti-interference ability
❯ Use the output signal to control the start and stop of high-voltage equipment
Tính năng chính
❯ Real-time monitoring and alarming
❯ The upper and lower limits of the monitoring threshold can be adjusted
❯ SUS304 stainless steel housing
❯ Remote alarm function
❯ There is no noise in the operation
❯ Relay output function (customized)
Tải xuống

Bạn có thể cũng muốn xem những sản phẩm này

Thông số sản phẩm

  • Model
  • MM322
  • Station
  • 2
  • Use
  • Dual-loop/dual-wire wrist strap
  • Monitor value
  • 0.75MΩ~10MΩ/35MΩ (adjustable)
  • Accuracy
  • ±10%
  • Discharge time
  • <0.1s
  • Power adapter
  • 100~240VAC input voltage, output 12VDC/1A
  • Material
  • SUS304
  • Dimensions
  • 138x66x31mm
  • Weight
  • Approximately 240 g
  • Environment
  • 0~+55°C(note no condensation),35~65%RH
  • Warranty
  • One-year
